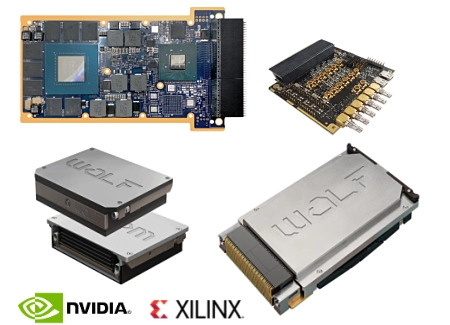

WOLF Advanced Technology designs and manufactures rugged VPX, XMC, MXM/MXC and VNX+ modules for video capture, process, display, and AI inference. Solutions are designed to operate in harsh aerospace and defense environments without sacrificing any of the high-speed processing available from advanced NVIDIA and Xilinx GPUs, APUs and FPGAs. Modules range from extremely low power modules to industry-leading high-performance modules which meet embedded systems size, weight and power (SWaP) requirements. Products include rapidly available COTS solutions, feature-tailored MCOTS solutions, and full custom designs. WOLF products are designed to pass rigorous environmental testing and manufactured to meet the highest reliability standards.
6U VPX
WOLF's 3U & 6U VPX video graphics modules support VPX REDI and OpenVPX standards and include advanced NVIDIA Quadro GPUs and Xilinx FPGAs, providing video output, image and data processing, video encoding to HEVC and AVC, and video capture. High speed GPUs and FPGAs provide the processing power required for GPGPU tasks such as High Performance Compute (HPC) and Artificial Intelligence (AI) machine learning inference.| Product Name | WOLF No | GPU/APU | Cuda Cores | Memory (GB) | Video Outputs - DisplayPort, HDMI, DVI | Video Outputs - SDI, Analog, Other | Video Inputs |
|---|---|---|---|---|---|---|---|
| VPX6U-BW5000E-DUAL-VO | 2638 | NVIDIA Blackwell RTX 5000E | 10496 | 24GB (GDDR7) | 8 | - | - |
| VPX6U-AD5000E-DUAL-VO | 2538 | NVIDIA Dual RTX5000E Ada | 19456 | 32GB (GDDR6) | 8 | - | - |
| VPX6U-P5000E-DUAL-VO | 2348 | NVIDIA Dual RTX5000E | 6144 | 32GB | 8 | - | - |
| VPX6U-BW5000E-DUAL-CX7 | 263L | NVIDIA Dual BW5000E (GB203) | 10496 | 24GB | 8 | - | - |
3U VPX
| Product Name | WOLF No | GPU/APU | Cuda Cores | Memory (GB) | Connectivity | Video Outputs | Video Inputs |
|---|---|---|---|---|---|---|---|
| VPX3U-THOR-CX7-PAY | 16TZ | NVIDIA IGX Thor (T5000) | 2560 | 128GB (LPDDR5X) | Advanced AI and High Performance Embedded Computing (HPEC), PCIe Gen 5 and 100Gbe | - | - |
| VPX3U-THOR-RD | 16T9 | NVIDIA IGX Thor (T5000) | 2560 | 128GB (LPDDR5X) | Advanced AI and High Performance Embedded Computing (HPEC), PCIe Gen 5 and dual 10Gbe | - | - |
| VPX3U-THOR-CX7-SBC | 16T5 | NVIDIA IGX Thor (T5000) | 2560 | 128GB (LPDDR5X) | Advanced AI and High Performance Embedded Computing (HPEC), PCIe Gen 5 and 100Gbe | - | - |
| VPX3U-BW5000E-CX7 | 163L | NVIDIA Blackwell RTX 5000E | 10496 | 24GB (GDDR7) | High Performance Embedded Computing (HPEC), PCIe Gen 4 and 200Gbe | - | - |
| VPX3U-BW5000E-SWITCH | 163S | NVIDIA Blackwell RTX 5000E | 10496 | 24GB (GDDR7) | High Performance Embedded Computing (HPEC), PCIe Gen 4 and 200Gbe | - | - |
| VPX3U-AD2000E-VO | 1578 | NVIDIA Ada RTX2000E | 3072 | 8GB (GDDR6) | PCIe Gen 4 | Up to 3 DisplayPort, HDMI/DVI options | - |
| VPX3U-AD2000E-FGX2-IO | 1570 | NVIDIA Ada RTX2000E | 3072 | 8GB (GDDR6) | PCIe Gen 4 | up to 4 12G-SDI or 2 ARINC 818 | up to 2 12G-SDI or 4 3G-SDI or 2 ARINC 818, 2 CVBS |
| VPX3U-AD5000E-VO | 1538 | NVIDIA Ada RTX5000E | 9728 | 16GB (GDDR6) | PCIe Gen 4 | Up to 3 DisplayPort, HDMI/DVI options | - |
| VPX3U-AD5000E-CX7 | 153L | NVIDIA Ada RTX5000E, ConnectX-7 | 9728 | 16GB (GDDR6) | High Performance Embedded Computing (HPEC), PCIe Gen 4 and 100Gbe | - | - |
| VPX3U-A2000E-FGX2-COAX | 1471 | NVIDIA A2000 | 2560 | 8GB (GDDR6) | PCIe Gen 4 | 4 12G-SDI | 2 12G-SDI, 2 CVBS |
| VPX3U-ORIN-CX7-FGX2-SBC | 14T0 | NVIDIA Jetson AGX Orin, ConnectX-7, up to 100GbE, PCIe Gen4, Video I/O, SBC | 2048 | 64GB (LPDDR5) | 1 MST DisplayPort or HDMI | 2 12G-SDI | 2 12G-SDI |
| VPX3U-ORIN-CX7-HPC | 14TZ | NVIDIA Orin, ConnectX-7 | 2048 | 64GB (LPDDR5) | PCIe Gen 4 and 100Gbe | - | - |
| VPX3U-ORIN-CX7-SBC | 14T5 | NVIDIA Orin, ConnectX-7 | 2048 | 64GB (LPDDR5) | PCIe Gen 4 and 100Gbe | 1 MST DisplayPort or HDMI | - |
XMC
WOLF develops XMC (Switched Mezzanine Card) graphics cards for video capture, process, encode and display. WOLF XMC video graphics boards can include an embedded NVIDIA GPU, AMD GPU and/or Xilinx FPGA. Rugged air cooled and conduction cooled options are available.| Product Name | WOLF No | GPU/APU | Cuda Cores | Memory (GB) | Video Outputs - DisplayPort, HDMI, DVI | Video Outputs - SDI, Analog, Other | Video Inputs |
|---|---|---|---|---|---|---|---|
| XMC-AD2000E-FGX2-IO | 3570 | NVIDIA Ada RTX2000E | 3072 | 8GB | 2 | 4 SDI | 4 SDI, 2 CVBS |
| XMC-A2000E-VO | 3476 | NVIDIA A2000E | 2560 | 8GB | 3 rear, 2 front | - | - |
| XMC-FGX2-6IO | 3185 | WOLF FGX2 | - | - | - | 12G-SDI, ARINC 818 | DisplayPort (UHD), 12G-SDI, ARINC 818, CoaXPress, CVBS/RGsB |
| XMC-FGX2-8IO | 3183 | WOLF FGX2 | - | - | - | 12G-SDI, ARINC 818 | 12G-SDI, ARINC 818, CoaXPress, CVBS, DVI, HDMI |
| XMC-FGX-SDI-4IO | 3080 | WOLF FGX | - | - | - | 4 SDI, 2 Analog | 2 SDI, 4 Analog, DP |
Small Form Factor VNX+
VNX+ is a new small-form-factor (SFF) VITA 90 proposed standard based on the published VITA 74 VNX standard. The VNX standard defines a form factor intended for spaces that are too small for a VPX module, at 89mm by 78mm with 19mm and 12mm height options. This form factor is roughly 30 percent of the volume compared to a typical 3U VPX. The VNX specification defines the physical size of the two standard-size modules, the module connectors, and the pin assignments of the signals on the module connector. The VNX+ standard expands on VNX introducing higher power capacities and new connectors.| Product Name | WOLF No | GPU/APU | Cuda Cores | Memory (GB) | Video Outputs - DisplayPort, HDMI, DVI | Video Outputs - SDI, Analog, Other | Video Inputs |
|---|---|---|---|---|---|---|---|
| VNXP-ORIN-NX | N4XP | NVIDIA Jetson Orin NX | 1024 | 16GB (LPDDR5) | DisplayPort MST or HDMI | - | - |
| VNXP-FGX2-VIO | N180 | WOLF FGX | - | 8GB (DDR4) | 3 rear, 2 front | 2 12G-SDI,4 6G/3G/HD-SDI | 2 12G-SDI,4 6G/3G/HD-SDI |
Product Name
Description
Description

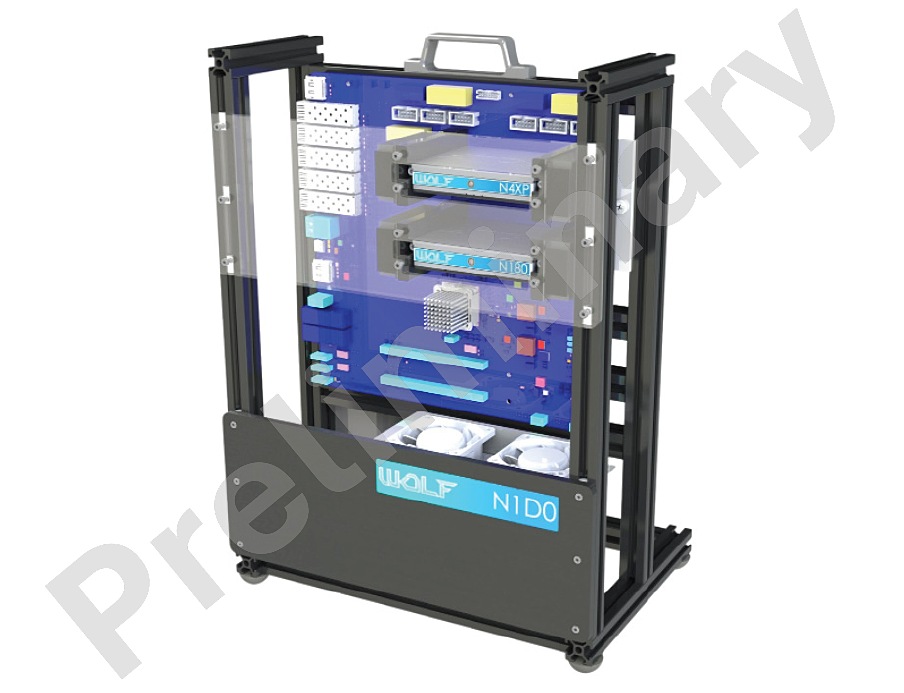

Development platform for WOLF VNX+ modules (N4XP and N180), Micro ATX form factor, numerous I/O connectors.WOLF-N1D0 is a Micro ATX VNX+ development platform designed to support bring-up, validation, and system integration for the WOLF-N4XP SBC and WOLF-N180 video I/O module. It provides two VNX+ module sites, onboard PCIe switching, PCIe x8 and PCIe x1 expansion interfaces, and extensive external I/O for video, networking, USB, serial, and debug connectivity.
- Two VNX+ module sites for WOLF VNX+ modules
- Full SBC connectivity for the VNXP-ORIN-NX (WOLF-N4XP)
- Video I/O connectivity for the VNXP-FGX2-VIO (WOLF-N180)
- DisplayPort input and DisplayPort output
- Four SDI I/O SFP+ cages
- USB 2.0 Type-A, USB 2.0 Type-C, and USB 3.2 Type-C interfaces
- MiniSAS connectivity
- 1000BASE-T Ethernet
- Onboard PCIe Gen4 switch
- PCIe Gen4 x4 connection to VNX+ Site 2
- PCIe Gen3 x4 connection to VNX+ Site 1
- One PCIe Gen4 x8 add-in card interface
- One PCIe x1 add-in card interface
Product Name: VNX+ Chassis
Description
Up to 8 VNX+ slots, multiple form factors, multiple cooling options, available NVIDIA® Jetson AGX Orin™ Industrial
- Slots for 2 to 8 VNX+ plug-in-modules
- Various I/O configurations
- Available with air-, liquid-, or conduction cooling design
- Customizable front plate with rugged 38999 connectors
- Designed for 28 VDC input, customizable on request
