Fast Direct RF Wideband Data Capture - Agilex 9
Advanced Direct RF Processing modules leveraging Intel’s Agilex 9 Direct RF-Series field programmable gate array (FPGA). Enabling direct digitisation and processing of wideband RF Signals, the AGRW014 device integrates 4 Rx and 4 Tx channels, with a sampling rate of 64GSPS, with 10 bit resolution and an RF input bandwidth of 32GHz..

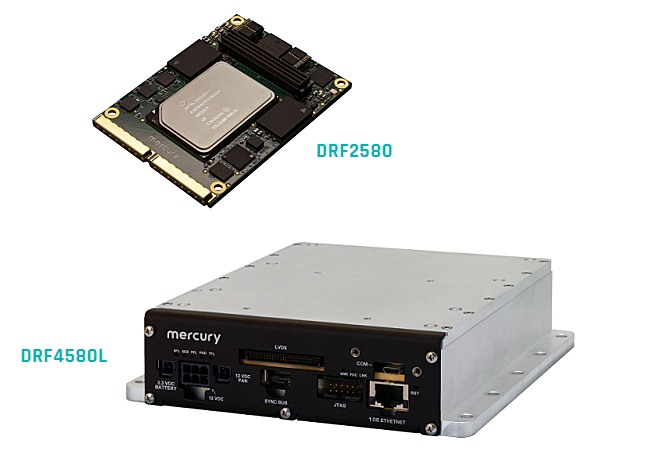

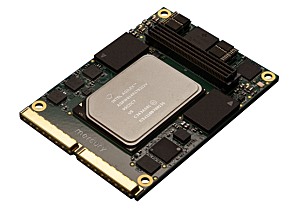

The DRF2580 is a high-performance System on Module (SoM) based on the Intel Agilex™ 9 SoC FPGA AGRW014 device.

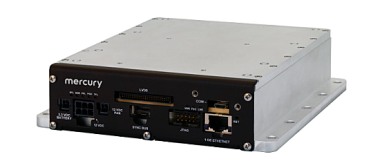

The DRF4580L is a rugged, Small-Form Factor module based on the Intel Agilex™ 9 SoC FPGA AGRW014 device.

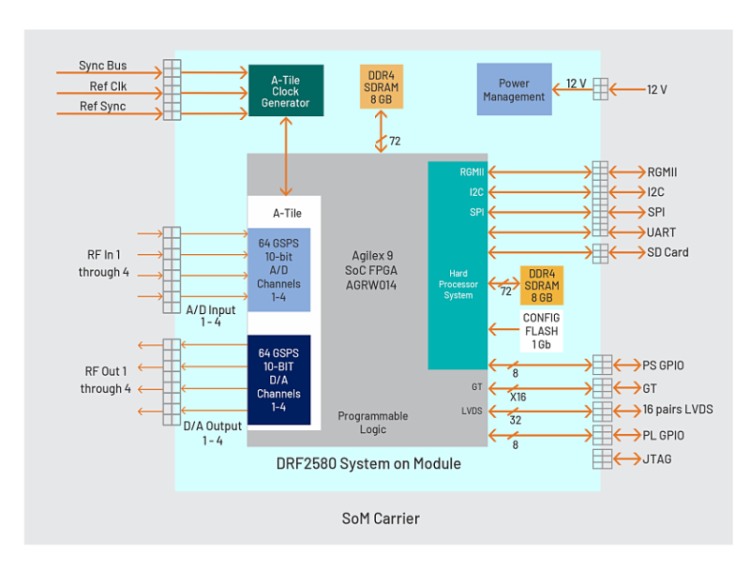

Block Diagram of 2580 System On Module (SOM)

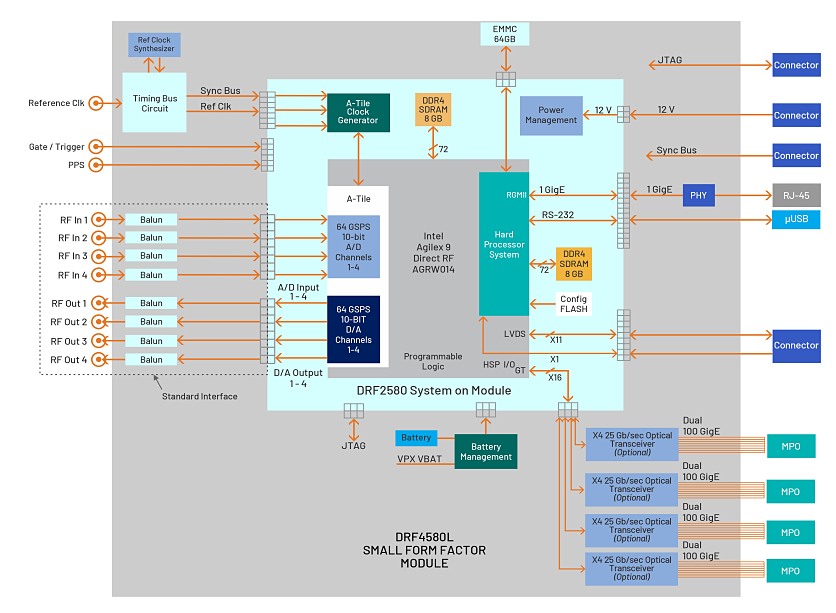

Block Diagram of 4580L Small Form Factor Module
Product Name:
Description:
Description
The DRF2580 has been designed to bring direct RF performance to a wide range of different applications by offering the FPGA in a small System-on-Module (SoM) solution measuring only 2.5 inches by 3.5 inches.
- Four 10-bit ADC channels and four 10-bit DAC channels
- Sampling Rate: 64 Gsps
- RF Input Bandwidth: Up to 32 GHz
- Intel Agilex 9® SoC FPGA - AGRW014
- 16 GB of DDR4 SDRAM
- GT connections for gigabit serial communication
- Ruggedized and conduction-cooled versions available
Description
The DRF4580L is a high-performance, Small Form Factor module measuring only 6.4 inches by 6.4 inches by 1.7 inches, for use in a range of environments that can't be satisfied with traditional board/chassis deployment.
- Four 10-bit ADC channels and four 10-bit DAC channels
- Sampling Rate: 64 Gsps
- RF Input Bandwidth: Up to 32 GHz
- Intel Agilex 9® SoC FPGA - AGRW014
- 16 GB of DDR4 SDRAM
- Four 100 GigE UDP interfaces (Optical QFSP28)
- GPIO (LVDS 11 Pairs)
- Ruggedized and conduction-cooled
