Rugged AI Edge Computers - Small Form Factor

SDK Embedded Systems Edge AI computer platforms are designed to be compact and rugged and are powered by NVIDIA® Jetson AGX Orin™ GPUs.

They are engineered for mission-critical SWaP-constrained applications including UAV/UAS, ISR and surveillance, autonomous vehicles, UGV/robotics, maritime systems and intelligent transportation, combining powerful AI processing, multi-camera connectivity, high-speed networking and rugged environmental protection in a compact lightweight mission-ready platform.

Despite their small size, these platforms are fully featured and suited to high-performance edge AI, deep learning, computer vision and real-time video processing.

General Environmental Specs

• Operating Temp: -25C to 70C & -40C to 70C (config dependent)
• Water proof & dust proof, anti-corrosion housing
• Designed to Meet - MIL-STD-810H, MIL-STD-461G, MIL-STD-704F
• DO-160H Applicable sections

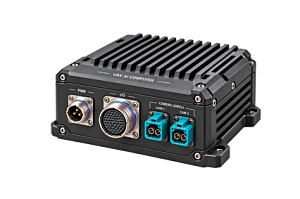

Product Name: UAV-N8RC

Description

Powered by the NVIDIA® Jetson Orin™ Nano 8GB, the UAV-N8RC delivers up to 67 TOPS of AI performance in Super Mode, enabling real-time artificial intelligence, computer vision, sensor processing and autonomous decision-making directly onboard the platform.

Designed for integration into space and weight constrained platforms, the UAV-N8RC provides a balanced combination of AI processing performance, rugged construction, low SWaP and flexible mission I/O.

• External dimensions only 130 x 90 x 40mm
• approx 650g typical
• NVIDIA® Jetson Orin™ Nano 8GB
• 8GB 128 bit LPDDR5 memory
• M.2 NVMe storage Up to 2TB
• 2x GMSL2 camera inputs
• 1x GbEthernet
• 2x USB 3.1 Gen 1
• 1x CAN 2.0 / Can-FD
• RS232/RS422/RS485, GNSS, PPS, GPIO (options)
• 1x Power (9 - 60 VDC)

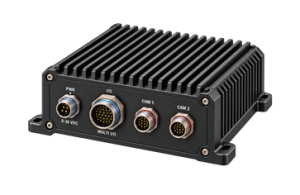

Product Name: UAV-NX16-100R

Description

Powered by NVIDIA® Jetson Orin™ NX 16GB, the UAV-NX16-100R delivers up to 157 TOPS of AI performance, enabling real-time computer vision, EO/IR processing, sensor fusion, autonomous navigation, object detection and advanced mission-payload processing directly at the tactical edge

Designed for SWaP-constrained military platforms the UAV-NX16-100R provides a balanced combination of AI processing performance, rugged construction, low SWaP and flexible mission I/O.

• External dimensions only 140 x 110 x 45mm
• approx 1Kg typical
• NVIDIA® Jetson Orin™ Nx 16GB
• 16GB LPDDR5 memory
• M.2 NVMe storage Up to 2TB
• 2x GMSL2 camera inputs
• 1x GbEthernet
• 2x USB 3.1 Gen 1
• 1x CAN 2.0 / Can-FD
• RS232/RS422/RS485, GNSS, PPS, GPIO (options)
• 1x Power (9 - 36 VDC)

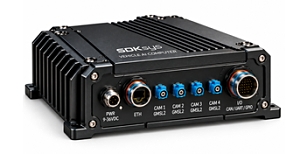

Product Name: VRC-NX16-200R

Description

Powered by NVIDIA® Jetson Orin™ NX 16GB, the VRC-NX16-200R delivers up to 157 TOPS of AI performance, enabling computer vision, object detection, classification, tracking, sensor fusion and intelligent video analytics.

Designed for real-time AI processing in demanding military, autonomous and industrial vehicle environments the VRC-NX16-200R provides a flexible connectivity with vehicle networks, sensors and control systems.

• External dimensions only 160 x 100 x 65mm
• approx 1.7Kg typical
• NVIDIA® Jetson Orin™ Nx 16GB
• 16GB LPDDR5 memory
• M.2 NVMe storage Up to 2TB
• 4x GMSL2 camera inputs
• 1x GbEthernet (option for 2x)
• UART & GPIO interface
• 1x CAN 2.0 / Can-FD
• 1x Power (9 - 36 VDC)


Product Name: SD-RPJAGX-64i

Description

The SD-RPJXV-64i is based on the Nvidia AGX Orin™ module with 2048 GPU cores and 64 Tensor cores.

• CPU/RAM : 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
• memory : 64GB 256-bit LPDDR5 (+ ECC) 204.8GB/s
• GPU: 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
• storage: 64GB eMMC 5.1 onboard + NVMe SSD support up to 4TB capacity
• 1x HDMI
• 2x USB 3.2 ports
• 2x UART @3.3V Levels UART0 and UART1
• 2x GbE, 1x GbE 1x 10GbE or 2x 10 GbE ports
• Camera: 8x Total (FPD-Link III)
• Video Encode/Decode
• GPIO
• 2x CAN Bus 2.0b ports
• 1x Power (18 - 36 VDC)
