Pentek Rugged SFF Ultrascale+ RFSoC FPGA



pentek Ultrascale+ RFSoC fpga module
Pentek

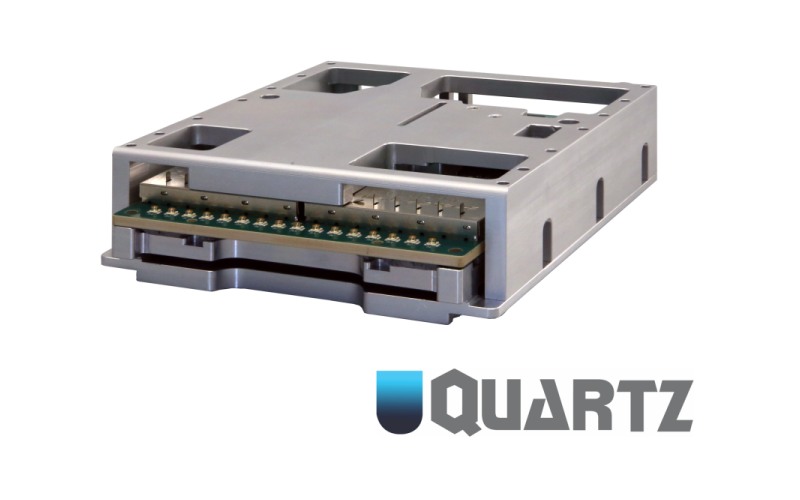

Pentek's New Model 6350/6353 is a self-contained RFSoC system in a Small Form Factor (SFF) rugged enclosure. Optimized for SWaP (size, weight and power), it measures 90mm (H) x 144mm (W) x 243mm (D) and weighs approx 3.5Kg. The 6350 is conduction cooled and designed to the IP67 specification for dust and water immersion, making it ideal for deployment in the harshest environments. Based on the Xilinx Zynq® UltraScale+ RFSoC FPGA, the Model 6350 is very suitable for SIGINT and COMINT, military communications, EW countermeasures, radar transceiver, test and measurement, SATCOM, LiDAR, 5G and LTE wireless applications.


pentek Ultrascale+ RFSoC analog io card

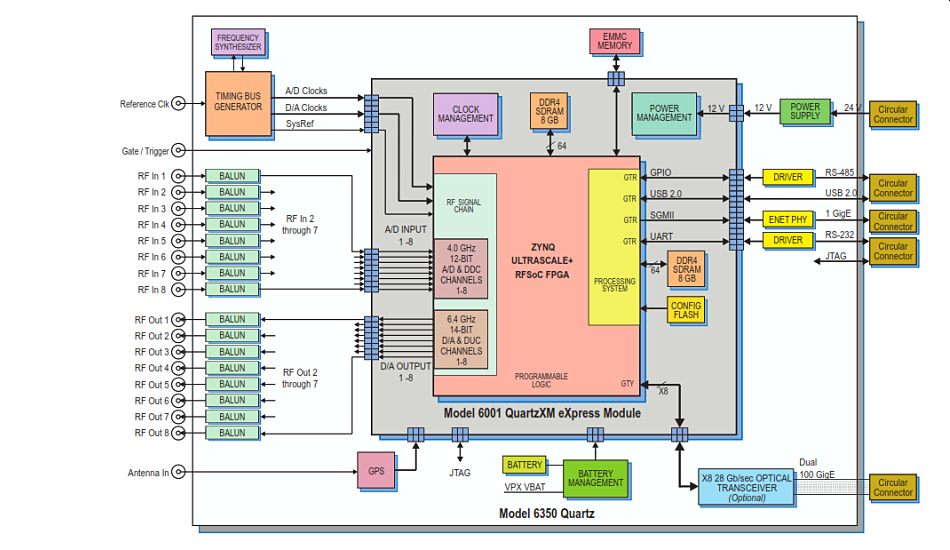

Complementing the RFSoC’s on-chip resources are the 6350’s sophisticated clocking section, a low-noise front end for RF input and output, 16 GBytes of DDR4, a gigabit serial optical interface capable of supporting dual 100 GigE connections, an optional GPS receiver, and general purpose I/O signal paths to the FPGA.


SFF (UltraScale+ RFSoC FPGA)

Product Name
Description

Product Name: Model 6350

Description

8ch ADC, 12 bit, 4GHz (with integrated DDCs) + 8ch DAC, 14-bit, 6.4GHz (with integrated DUCs)

Product Name: Model 6353

6353

Description

Gen 3 - 8ch ADC, 14 bit, 5GHz (with integrated DDCs) + 8ch DAC, 14-bit, 10GHz (with integrated DUCs)
