FPGA PCIe solutions with FMC+

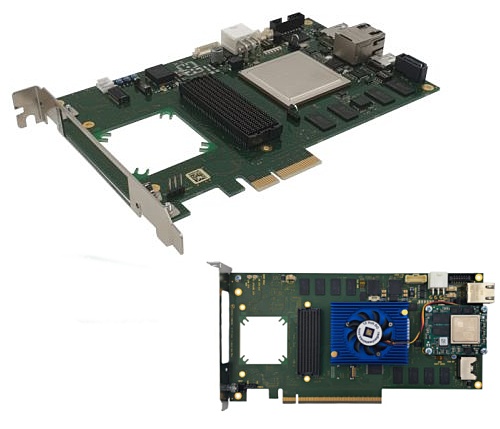

PCIe Carrier cards with FPGA & FMC+ site.
Fully compliant with common standards (VITA 57.4, PCIe, AXI4, etc.), these PCIe boards were designed to easily integrate into existing standard PC systems or in stand-alone mode in your own enclosure. These PCIe boards are highly versatile thanks to their perfect technology mix: Backend FPGA, FMC+ site, DDR4 memories, management system, I/O links, etc. TECHWAY also provide cost-effective companion FMC cards with SFP, SFP+ and rugged Optical interfaces [Read more...].
Product Name
Description
Description

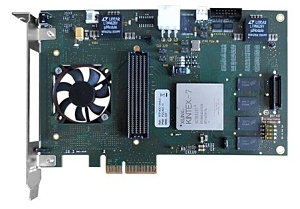

FPGA board PCIe with FMC+ slot (AMD/Xilinx Kintex-7)- PCIe x4 Gen2 (16 Gbps)
- Xilinx Kintex-7 FPGA
- User I/Os connector
- HPC FMC or HSPC FMC+ connector
- Up to 12 HSS links @ 10 Gbps per link
- Programmable oscillators or clock generator
- Power supply, temperature, fan monitoring
- Linux (up to 6.9.4) and Windows (up to 11) supported
Description

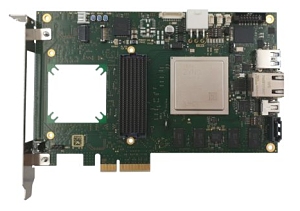

Zynq board PCIe with FMC+ site (AMD/Xilinx SoC)- PCIe x4 Gen3
- Zynq UltraScale+ MPSoC
- FMC+ connector
- Stand-alone mode
- High-speed protocol capable : Up to 16,3 Gbps
- Programmable oscillators
- Extended optical interface
- Windows or Linux support
- Development Kit Available - see below
Description

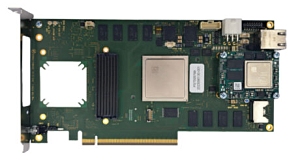

Kintex UltraScale+ PCIe board with FMC+ site- PCIe Gen3 x16
- Kintex UltraScale+ FPGA
- FMC+ connector
- x16 HSS up to 25 Gbps with KUP11
- x20 HSS up to 25 Gbps with KUP15
- FireFlyTM site (x4 HSS up to 25 Gbps)
- User I/O (x16 low-speed, x7 high-speed, x2 HSS)
- Windows or Linux support
PFP-ZU+ Development Kit
The PFP-ZU+ Development Kit (DK_PFP-ZU+) has been developed to allow users, both novices and experts in Zynq technology, to easily
implement the unique features of the Zynq architecture.
The Development Kit provides examples of how to use the interfaces and multiple boot modes of the board. It allows FPGA and Software developers to work independently from each other.
[Read more]
- The TECHWAY’s Reference Design (Vivado/Vitis/PetaLinux)
- The Development Kit, DK_TwPCIe_ZU+, allowing to integrate the TECHWAY’s PCIe API
- Windows & Linux
The Development Kit provides examples of how to use the interfaces and multiple boot modes of the board. It allows FPGA and Software developers to work independently from each other.
[Read more]
Integrated GPUDirect® RDMA
TECHWAY integrates GPUDirect® RDMA as a native feature in its PCIe development kit, offering ultra-fast, ultra-low latency data transfers between FPGAs and GPUs. The entire range of TECHWAY products based on AMD/Xilinx Kintex-7 and UltraScale+ FPGAs benefit from this capability, ensuring immediate compatibility and scalability across the entire range.
With a unified PCIe architecture and common development kit, developers can easily migrate from one FPGA platform to another, accelerating integration and drastically reducing time-to-market. The TECHWAY driver, optimized for multi-GPU environments, enables powerful and scalable designs where multiple NVIDIA GPUs collaborate without throughput limitations.
Fully integrated with NVIDIA kernel modules and CUDA® tools, the development kit ensures continuous updates, long-term maintenance, and direct access to GPU resources via RDMA. With dedicated PCIe APIs to efficiently manage transfers, TECHWAY offers developers a turnkey solution that combines performance, simplicity, and sustainability.
[Read more]
