High Resolution Data Capture - Xilinx Zynq Ultrascale+ RFSoC
reflex-ces specialise in developing high performance 3U VPX FPGA processing solutions for high speed data conversion, designed for high end data acquisition and signal processing applications. reflex-ces combine the latest leading edge technologies to deliver best in class capabilities for typical applications including Defence (Electronic Warfare systems, Wide band Radar), High Energy Physics, Medical Imaging (Digital X-Ray image enhancement).

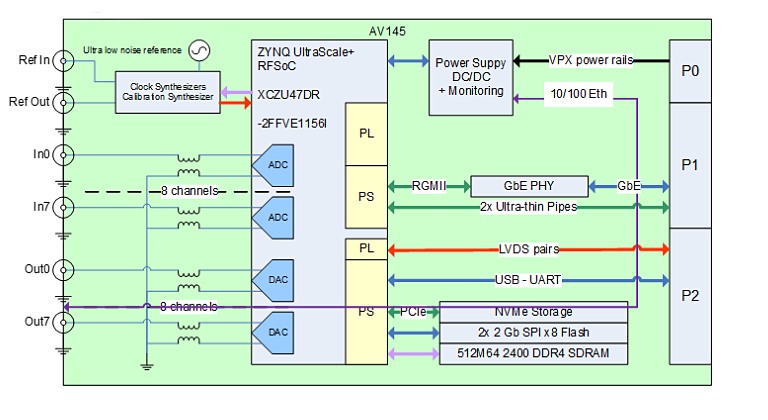

The AV145 intergrates a Xilinx® ZYNQ® Ultrascale+™ RFSoC GEN 3 XCZU47DR with the minimum external resources for low power applications. It provides an impressive processing
capability of more than 5.5 TMACs (Multiply Accumulate per second), four 1333 MHz Arm Cortex-A53 cores, one 512M64 or 1G64 DDR4-2400 SDRAM memory for data processing, two 2 Gb synchronous
FLASH memory for program boot and one 1TB NVMe embedded SSD.
The AV145 is part of apissys’ range of High-Speed data conversion and signal processing solutions based on the VITA 46, VPX standard.
Product Name:
Description:
Description
The AV145 features eight channels 14-bit 5 Gsps ADC and eight channels 14-bit 9.85 Gsps DAC with optimized analog performances, making it ideally suited for embedded signal processing applications such as Electronic Warfare, Wideband Radar Transmitter/Receivers or Wideband Communication applications.
- 8 channels 5 Gsps 14-bit ADC
- 8 channels 9.85 Gsps 14-bit DAC
- Configurable DDC and DUC
- 2 Ultra Low jitter clock synthesizer
- 1x 64-bit 4GBytes DDR4 2400 SDRAM
- 1x 128GBytes NVMe embedded SSD
- Supplied with embedded Linux and all necessary cores to build user FPGA applications
- Conduction or Air-Cooled
