VNX+ Chassis (Vita 74)
WOLF’s VNX+ high-performance chassis meets the needs of demanding C5ISR applications, providing a secure compute node with advanced AI and HPC processing capabilities. The VNX+ form factor minimizes size, weight and power, while still ensuring a high level of performance.
Product Name:
Description:
Product Name: VNX+ Chassis
Description

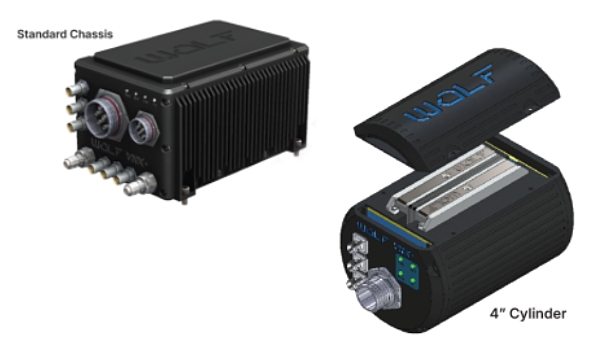

Up to 8 VNX+ slots, multiple form factors, multiple cooling options, available NVIDIA® Jetson AGX Orin™ Industrial
- Slots for 2 to 8 VNX+ plug-in-modules
- Various I/O configurations
- Available with air-, liquid-, or conduction cooling design
- Customizable front plate with rugged 38999 connectors
- Designed for 28 VDC input, customizable on request
Description
Development platform for WOLF VNX+ modules (N4XP and N180), Micro ATX form factor, numerous I/O connectors.WOLF-N1D0 is a Micro ATX VNX+ development platform designed to support bring-up, validation, and system integration for the WOLF-N4XP SBC and WOLF-N180 video I/O module. It provides two VNX+ module sites, onboard PCIe switching, PCIe x8 and PCIe x1 expansion interfaces, and extensive external I/O for video, networking, USB, serial, and debug connectivity.
- Two VNX+ module sites for WOLF VNX+ modules
- Full SBC connectivity for the VNXP-ORIN-NX (WOLF-N4XP)
- Video I/O connectivity for the VNXP-FGX2-VIO (WOLF-N180)
- DisplayPort input and DisplayPort output
- Four SDI I/O SFP+ cages
- USB 2.0 Type-A, USB 2.0 Type-C, and USB 3.2 Type-C interfaces
- MiniSAS connectivity
- 1000BASE-T Ethernet
- Onboard PCIe Gen4 switch
- PCIe Gen4 x4 connection to VNX+ Site 2
- PCIe Gen3 x4 connection to VNX+ Site 1
- One PCIe Gen4 x8 add-in card interface
- One PCIe x1 add-in card interface
