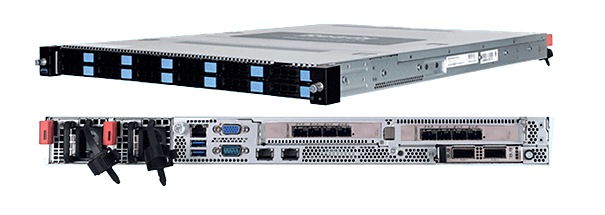

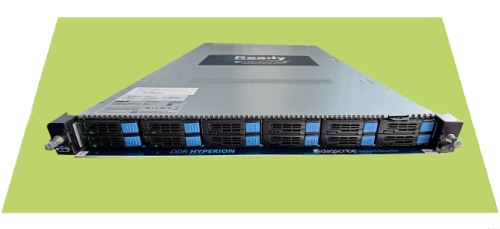

Digital Data Recorder - sFPDP Packet Capture & Recording System

A high Speed sFPDP Packet Capture & Recording System based on Techway's RAVEN-I and RAVEN-II FPGA cards, enabling flexible sFPDP configurations that scale from legacy systems to next-generation high-speed capture.

Supporting VITA 17.1 and VITA 17.3 the RAVEN cards enable up to four concurrent sFPDP channels with advanced features including flow control, CRC, and copy/loop modes. Integrated directly into the Hyperion recording platform architecture, RAVEN provides deterministic, low-latency data transfer from sensor to storage, making it ideal for proven, legacy, and mixed-rate sFPDP environments to enable higher aggregate throughput while maintaining lossless, full line-rate recording.

RAVEN I sFPDP PCIe Card

• Up to 4 channels @6 Gbps • PCIe x4 Gen2 • VITA 17.1 or VITA 17.3

RAVEN II sFPDP PCIe Card

• Up to 4 channels @10 Gbps • PCIe x16 Gen3 • VITA 17.1 or VITA 17.3
