3U / 6U Power Supply Modules



3U / 6U power supply modules and power backplanes
pci-systems

A range of Power Supplies in 3U and 6U air cooled and conduction cooled formats for VPX systems (cPCI also available) manufactured by Hartmann Electronic.

  • Wide range input voltage from 90 – 264 Vac or 18-36Vdc
  • Power Factor Correction (PFC)
  • 6 output voltages
  • Hot swap and redundancy operation with current share bus
  • Fully compliant with VITA62


Product Name
Description

Product Name: D575.00701

D575.00701

Description

3U VITA62 715W DC/DC Conduction Cooled (19-35 VDC Input)

3U 715W DC/DC Conduction Cooled (19-35 VDC Input)


Product Name: D575.00643

D575.00643

Description

3U 10HP 600W AC/DC Air Cooled (85-264 VAC Input)

33U 600W AC/DC Air Cooled (85-264 VAC Input)


Product Name: D575.00502/512

D575.00502/512

Description

6U 1300W DC/DC Air Cooled/Conduction Cooled (24 or 48V DC Input)

6U 1300W DC/DC Air Cooled/Conduction Cooled (24 or 48V DC Input)


Product Name: D575.00660

D575.00660

Description

6U 850W AC/DC Air Cooled (90-264VAC)

6U 1300W DC/DC Air Cooled/Conduction Cooled (24 or 48V DC Input)

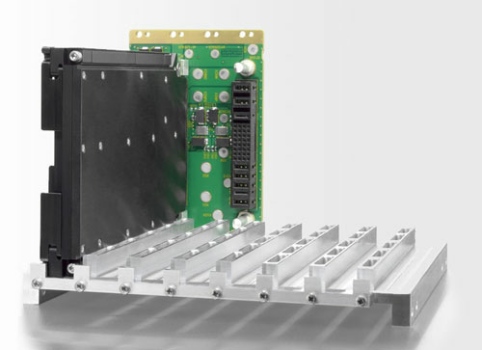

Power Backplanes & Accessories



power backplanes and accessories


Power Backplanes and Accessories 3U and 6U, 1 to 4 Slots, suitable for air- and conduction- cooled systems.


Product Name
Description

Product Name: B1931AM220

B1931AM220

Description

3U - 1Slot for Vin=230VAC


Product Name: B1931D4221

B1931D4221

Description

3U - 1Slot for Vin=24VDC, designed for parallel Operation


Product Name: B1932D4220

B1932D4220

Description

3U - 2Slot for Vin=24VDC, designed for parallel Operation


Product Name: B1961D4220

B1961D4220

Description

6U - 1Slot for Vin=24VDC


Product Name: B1961AM220

B1961AM220

Description

6U - 1Slot for Vin= 230VAC VPXDC-3U-FILT1 3U, Filter Module, according to MIL-STD-461F


Product Name: VPXDC-3U-HOLD

VPXDC-3U-HOLD

Description

3U - Hold-Up Module, for 15ms Hold-Up-Time with 715W max.



Other models are available, for a complete list of options see Hartmann's website [Read more...]
