System-on-Module based on Venus Versal™ RF FPGA
reflex-ces specialise in developing System on Module (SoM) and MultiProcessor System on Chip (MPSoC) modules and carrier cards.

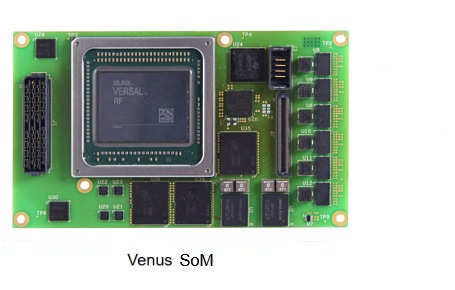

The Venus Versal™ RF module is a high-performance Small Form Factor (SFF) FPGA module designed for next-generation embedded systems requiring exceptional RF processing capabilities in a compact footprint.
Built around the latest AMD Versal™ RF adaptive SoCs, Venus combines high-speed data converters, powerful programmable logic, embedded processing engines and high-bandwidth memory on a single module.
Supporting up to 16 RF ADCs, 16 RF DACs, analog bandwidths up to 18 GHz, and an ultra-low jitter clock architecture, Venus enables the development of advanced software-defined radio (SDR), electronic warfare, radar, communications and test & measurement systems while significantly reducing integration complexity.
The Versal™ RF family combines programmable logic with integrated high-speed RF ADCs and DACs, AI-capable processing engines, embedded Arm® processors and advanced networking interfaces. This heterogeneous architecture enables real-time processing of increasingly complex RF workloads while maintaining deterministic performance and low latency.

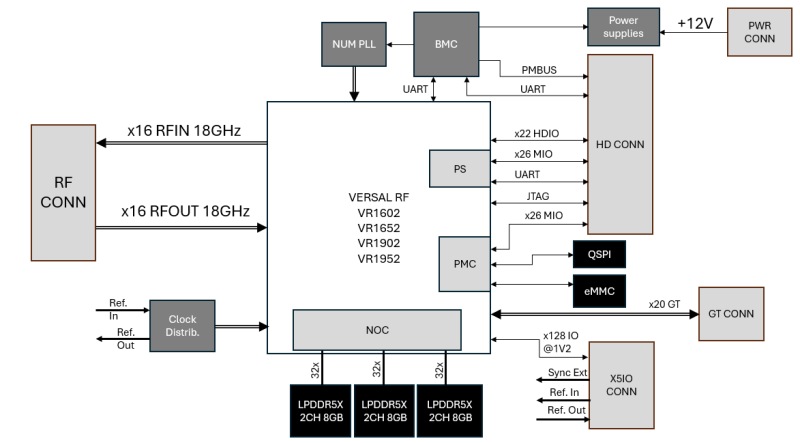

Block Diagram of Venus Systsem on Module (SoM)
Product Name:
Description:
Description
The Zeus Zynq® UltraScale+™ MPSoC System-on-Module
- AMD Xilinx® Versal™ RF
- VR1602, VR1902 / VR1652, VR1952
- Up to 16x 14-bits ADC, up to 32Gsps **
- Up to 16x 14-bits DAC 8Gsps **
- Analog BW up to 18GHz
- Ultra Low jitter clock synthesizer
- 20x GT / 150x GPIO / 52x MIO
- 3x 32-bit 64Gb LPDDR5X
