ApisSys - Analog 3U VPX Data Conversion with Virtex Ultrascale+ and Kintex Ultrascale FPGA
ApisSys specialise in developing high performance 3U VPX FPGA processing solutions for high speed data conversion, designed for high end data acquisition and signal processing applications. ApisSys combine the latest leading edge technologies to deliver best in class capabilities for typical applications including Defence (Electronic Warfare systems, Wide band Radar), High Energy Physics, Medical Imaging (Digital X-Ray image enhancement). Their R&D and manufacturing is carried out within Europe to provide ITAR free solutions...
Ultrascale+
Product Name:
Description:
Description

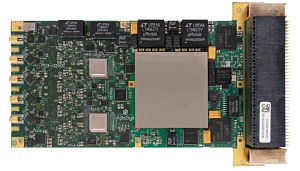

The AV151 combines 4x 12-bit ADCs up to 20 Gsps, 4x 16-bit DACs up to 28 Gsps, and 18 GHz bandwidth with a Virtex® Ultrascale+™ FPGA, offering outstanding performance for demanding applications.Fully aligned with the SOSA standard, the AV151 supports a variety of communication protocols, including PCIe, Gigabit Ethernet and a large number of user-defined I/O.- with Xilinx Ultrascale+™ VU9P / VU13P FPGA
- 4 channels 20 Gsps 12-bit ADC
- 4 channels 28 Gsps 16-bit DAC
- Configurable DDC and DUC
- One Ultra Low jitter clock synthesizer
- 2x 64-bit 8GBytes DDR4 2666 SDRAM
- 48x User-defined IO extension on P2 (optional)
- SOSA Aligned
- Suited to Ultra Wideband Radar / ECM / SIGINT applications
Description

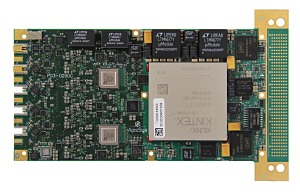

The AV150 combines four 14-bit 3 Gsps ADCs and four 16-bit 6/12 Gsps DAC with ultra-high processing power delivered by an AMD Virtex® Ultrascale+™ FPGA (VU7P/VU9P/VU13P).- with Xilinx Ultrascale+™ VU7P / VU9P / VU13P FPGA
- 4 channels 3 Gsps 14-bit ADC
- Independent Digital Down Converters (decimation factor 2 to 48)
- 4 channels 6/12 Gsps 16-bit DAC
- Independent Digital Up Converters (interpolation 2 to 24)
- One Ultra Low jitter clock synthesizer
- 2x 1G64 DDR4-2666 SDRAM
- Suited to Phased-Array Radar Transmitter / Receiver, Electronic Warfare ESM /ECM, MIMO and Wideband Communications (high resolution) applications
Description
The AV143 combines one dual channel 12-bit 3.2 Gsps / single channel 12-bit 6.4 Gsps ADC and one dual channel 12-bit 3.2 Gsps / single channel 12-bit 6.4 Gsps DAC with ultra-high processing power delivered by Xilinx® Virtex® Ultrascale+™ FPGA.- with Xilinx Ultrascale+™ VU7P / VU9P / VU13P FPGA
- Dual 3.2 Gsps / Single 6.4 Gsps 12-bit ADC-DAC
- One Ultra Low jitter clock synthesizer
- 2x 1G64 DDR4-2666 SDRAM
- Suited to low latency applications such as Electronic Warfare, Wideband Radar Transmitter/Receivers or Wideband Communications
Ultrascale
Product Name
Description
Description

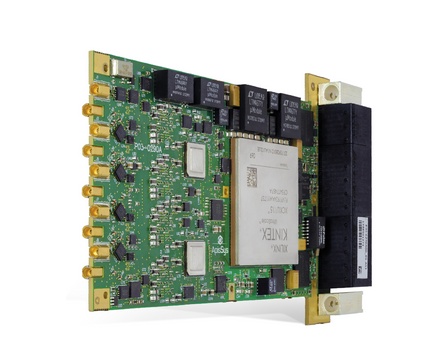

The AV129 combines four 14-bit 3 Gsps ADCs and four 16-bit 6/12 Gsps DAC with ultra-high processing power delivered by Xilinx® Kintex® Ultrascale™ FPGA.- with Xilinx Ultrascale™ KU115 FPGA
- 4 channels 3 Gsps 14-bit ADC
- independent Digital Down Converters (decimation factor 2 to 48)
- 4 channels 6/12 Gsps 16-bit DAC
- independent Digital Up Converters (interpolation 2 to 24)
- One Ultra Low jitter clock synthesizers
- 800 MHz 2x 256M64 DDR3 SDRAM
- suited for fully synchronous multiple channels test and measurement, MIMO, Electronic Warfare or Ultra-Wideband Radar Transceiver applications
