Rugged 3U VPX SATA Storage Module (SATA-3 6Gbs)

rugged SATA Storage module
SDK Embedded Systems
SDK Embedded Systems SD-3UVPXRSS 3U VPX Storage module is designed to operate in harsh Military and Industrial applications / environments. The module suppports SDK's Panther Rugged SSD drives with support for up to 2TB MLC or up to 512GB SLC Grade 2.5" SSD.

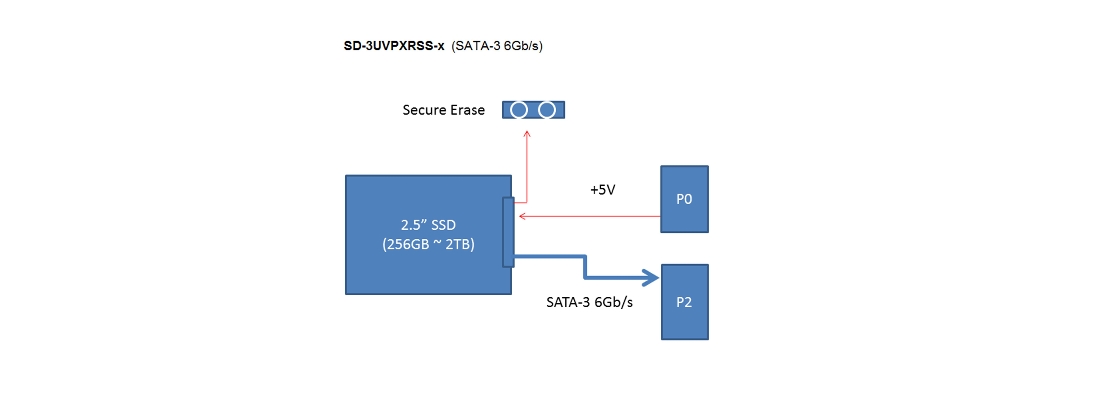

Block Diagram

3U VPX SATA-3 Storage block diagram
Product Name

Product Name: SD-3UVPXRSS


  • Compliant with VITA 46,47,48,65
  • Support One-Key Intelligent Destruction (For SATA port)
  • High performance and Low Power Consumption
  • Shock and Vibration compliant to MIL-STD-810G
  • Operating Temperature -40+85C
  • Storage Temperature -55+105C ambient
  • Up to 2TB Capacity MLC NAND
  • Up to 512GB Capacity SLC NAND
  • AES 256-bit encryption
  • Conduction Cooled design
  • Operating Shock: 40Gs half-sine wave (11ms)
  • Operating Vibration: 2Gs from 10 to 2000Hz
  • Humidity: 5 to 95%, non-condensing
