RF Signal Analysis & Data Capture with NVMe PCIe GEN3 Storage
New Application Note AN104...
Recording/Replaying High Speed RF signals at full incoming rate requires high performance storage to avoid data loss. This application note describes how 3U VPX COTS products based on the latest Xilinx FPGAs and NVMe can be integrated to produce an RF bulk storage system with data storage/replay at 4GB/s using PCIe GEN3.
[Contact Us...] for the full Application Note.
This application note explains the use of NVMe drives via PCIe GEN3 to overcome the issues of capturing and storing High Speed RF signals for offline analysis.
[Contact Us...] for the full Application Note.
Zynq Ultrascale+ RFSoC FPGA Processor
In addition to the RFSoC on-chip resources Pentek's Quartz™ Programmable SoC architecture includes 16 GBytes of DDR4 SDRAM, a 28Gb/sec optical interface supporting built-in dual 100GigE interface, Gen3 x8 PCIe Interface, LVDS User I/O Interface and the new QuartzXM eXpress Module design allows for flexible development and deployment.
8ch 4GSPS A/Ds with DDC
8ch 6.44GSPS D/As with DUC
Dual Optical 100GigE Interface
Gen3 x8 PCIe Interface
Hartmann Backplane, Chassis & Power Supply Solutions
Electronic packaging solutions from open frame lab development through to rugged deployment, including standard and custom backplanes (3U/6U VME/64x, cPCI, AdvancedTCA, VPX etc).
Electronic packaging solutions from lab development through to deployment, including standard and custom backplanes (3U/6U VME/64x, cPCI, AdvancedTCA, VPX etc).

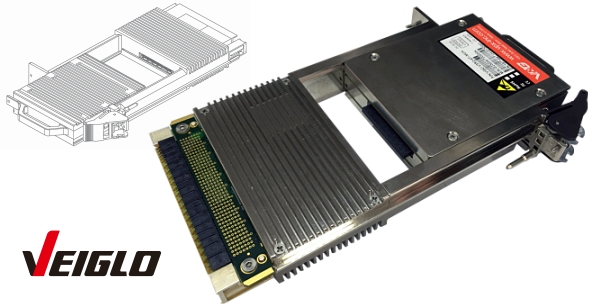

3U VPX Removable Solid State Storage (PCIe Gen3.0)
Hot-Pluggable RAID Storage...
Up to 8TB NAND Flash Capacity
Sequential R/W up to 3.2GB/S

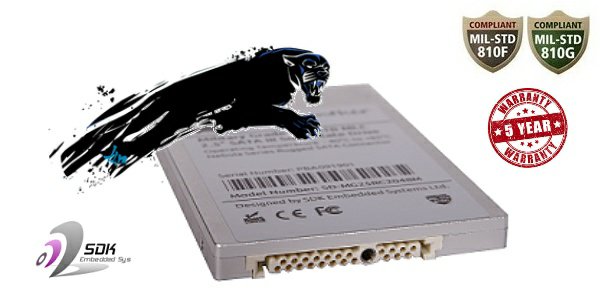

Panther Rugged Solid State Drives
Designed to Operate in Harsh Environments...
SLC & MLC SSD storage with high-reliability Rugged Nebula SATA Connector for increased numbers of insertions.
SLC & MLC SSD storage with high-reliability Rugged Nebula SATA Connector for increased numbers of insertions.
High Speed Realtime Data Recording
'Jump Start' your recorder project with a Ready-to-Run Recording System, includes fully integrated GUI & control API and high-speed disk arrays. Analog I/O (upto 3.2GSa/s) and Digital I/O (10GbE & SFPDP).
Ready-to-Run Recording Systems, fully integrated (GUI and control API)and featuring a range of A/D and D/A resources or digital I/O with high-speed disk arrays.
Rugged Servers & Mission Computers
Small form factor and rack mounted fully rugged, high performance rugged mission platforms with removable SSD storage and supporting the latest Intel Core-i7 quad core & Nvidia processors. NAS and Ethernet Switch options also available.
Small form factor and rack mounted fully rugged, high performance rugged mission platforms with removable solid state storage. NAS and Ethernet Switch options also available.
Rugged Ethernet Switches & Media Converters
Electronic and electro-optic components and subsystems for use in harsh environment networking equipment applications.
Electronic and electro-optic components and subsystems for use in harsh environment networking equipment applications.
High Speed Data Conversion
High performance 3U VPX cards and FMC modules designed for high end data acquisition and signal processing applications.
High performance 3U VPX cards and FMC modules designed for high end data acquisition and signal processing applications.
High Performance Data Acquisition (with Ultrascale FPGA)

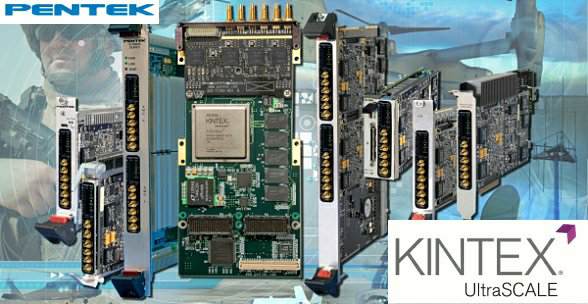

Pentek's Software Radio, ADC, DAC I/O products are the most comprehensive in the industry. Based on Xilinx FPGA (Virtex-6, Virtex-7 & the latest Kintex Ultrascale and RFSoC) platforms are available in AMC, XMC, FMC, PMC, cPCI, PCIe, VME and VPX form factors.
Pentek's Software Radio, A/D I/O products are the most comprehensive in the industry, supported in many form factors.
Rugged Military Grade Displays, Tablets and Laptops
Designed to satisfy mission critical requirements...
Panel PC's & Monitor's [Read more...]
Tablets and Laptops [More info...]
Designed to satisfy mission critical requirements...
Panel PC's & Monitor's [Read more...]
Tablets and Laptops [More info...]
Latest News Highlights from AES
-
NEW - Military Grade 24” Panel PC and Display
The Military grade Panel PC SD-24WRPC-CV and Military grade monitor SD-24WRD are specifically designed for military applications where low EMI and long-term vibration resilience are essential criteria. Both models are qualified against MIL-STD-810 and MIL-STD-461. [Read more...] -
Latest S-Band, C-Band and X-Band Transceiver 3U VPX FPGA card
The AV129 combines four 14-bit 3 Gsps ADCs and four 16-bit 6/12 Gsps DAC with ultra-high processing power delivered by Xilinx® Kintex® Ultrascale™ FPGA, making it ideally suited for fully synchronous multiple channels test and measurement, MIMO, Electronic Warfare or Ultra-Wideband Radar Transceiver applications. [Read more...] -
NEW Backplane, Chassis and Power Supply Solutions
AES is proud to announce it is now working with Hartmann Electronic to supply Backplane, Chassis and Power Supply solutions. As an active member of both PICMG and VITA, and with over 45 years of experience in high-speed backplane design and manufacturing, Hartmann offers an extensive range of backplanes and system platform products. [Read more...] -
Latest C-band capable ADC-DAC 3U VPX FPGA card
The AV125 combines one channel 12-bit 5.4 Gsps ADC and one channel 12-bit 5.4 Gsps DAC with the ultra-high processing power delivered by Xilinx® Kintex® Ultrascale™ FPGA to provide 2GHz of instantaneous bandwidth and a total latency of 30 nanoseconds from ADC input to DAC output. [Read more...] -
NEW 3U VPX RAID Storage with Rugged Removable Memory Module
Supporting PCIe Gen3.0 this newly released storage module offers unique features for building rugged 3U VPX based systems requiring secure data logging and retrieval. With solid state storage capacities up to 8TB and support for RAID 0,1,5,6,10 & JBOD, the module can be supplied in Air Cooled and Condution Cooled formats with high reliability rugged connectors supporting up to 10,000 insertions. [Read more...] -
NEW 6.4GHz (12 bit) Dual Channel ADC/DAC FPGA Module
Pentek has introduced Model 71141 the latest member of the 'Jade' family of high-performance data converter XMC modules based on the Xilinx Kintex Ultrascale FPGA. This new module covers L-band, S-band and C-band, but also extends into X-band and is suitable for connection to IF or RF signals for very wideband communications or radar system applications including SATCOM, SIGINT, ELINT, SAR, LIDAR and SDR. [Read more...] -
Programmable FPGA Supports upto 100 Gigabit Ethernet and 10 Gigabit S-FPDP Networks
The V1152 is an advanced XMC solution from NewWave DV designed to provide a real time high-bandwidth network interface and processing module for next generation radar and signal intelligence systems. This new card is available with a range of Xilinx Virtex/Kintex UltraScale+ FPGAs, different memory configurations and also available in PCI Express format (V5052). [Read more...] -
SDK Introduce Rugged GPGPU Computer with NVIDIA 768-CUDA cores
The SD-7RP1050GPU is a High Performance Embedded Computer (HPEC) based on NVIDIA Pascal GPU Architecture. This rugged mission platform powered by the GeForce™ GTX 1050Ti delivers unsurpassed graphics, video, and GPU computing performance, and is an ideal solution where SWaP is critical for performance driven systems such as defense and military/aerospace applications. [Read more...] -
NEW Sentinel Intelligent Signal Scanning Recorder
The Pentek RTS 2620 6GHz RF Sentinel™ Intelligent Signal Scanning rackmount recorder, is a fully integrated signal scanner, with RF tuner and RF upconverter which can scan and search from 2 MHz to 6 GHz at 30 GHz/sec scan rate. [Read more...] -
Pentek New Software Radio Module with Texas Instruments ADC32RF45 A/D Converter
The Model 3320 FMC accepts two analog RF or IF inputs on front panel connectors into a Texas Instruments ADC32RF45 dual 14-bit 3 GSPS A/D converter with built-in multiband DDCs. On the output side, the Texas Instruments DAC39J84 D/A converter accepts baseband real or complex data streams from the FPGA. Each stream then passes through digital interpolation and upconversion stages before delivery to the D/A at sampling rates up to 2.8 GSPS. [Read more...] -
Valid8 Launch Two Exciting Internet of Things (IoT) Test Applications:
The new IoT Load Tester and IoT Conformance Tester for Embedded Devices provide an all-in-one, cost-effective solution for emulating and testing against large numbers of IoT devices. Designed as a fully automatable solution they address the unique challenges of IoT testing by supporting a wide range of protocols and industries. [Read more...] -
NEW PCIe FMC Carrier from PENTEK
Pentek's Model 7070 is a high performance PCIe Virtex-7 FMC Carrier board. Linked with Pentek's SPARK 8266 system it provides an ideal development platform for data acquisition applications. [Read more...] -
ApisSys NEW Ultra High Speed Data Converter 3U VPX Products
ApisSys release two new High Speed Data Conversion cards the AV119 Wideband 2.5Gsps Transceiver with DDC and the AV121 4.0Gsps Receiver. [Read more...]
