Rugged 3U VPX Removable Storage Modules (PCIe Gen3.0)



Rugged 3U VPX RAID Storage with Removable Solid State MLC SSD NAND FLASH Module
VEIGLO Information Systems Ltd

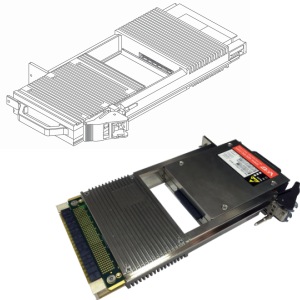

A Rugged 3U VPX RAID Storage card with a Removable Solid State Storage Module designed to operate in harsh Military and Industrial applications and environments.

The removable storage is composed of 8 modules of NAND flash in a removable hot-pluggable cannister. This storage module connects to the base 3U VPX RAID card via 8x SATA3 (6Gbps) interfaces using a rugged high performance connector supporting multiple insertions.

PCIe Gen3.0 (8Gbps)
Maximum capacity up to 8TB
Maximum READ/WRITE speed up to 3.2GB/S

Compliant with VITA46, VITA48 and VITA65

Block Diagram

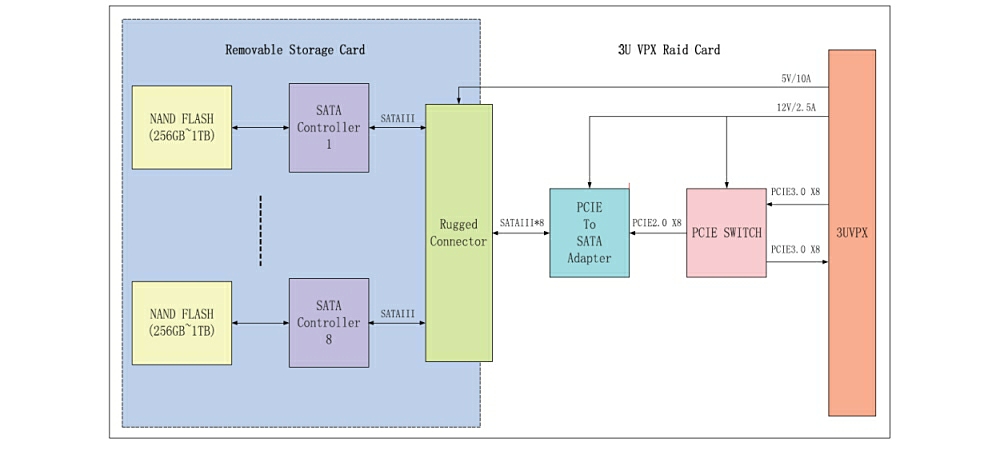

3U VPX RAID Storage block diagram


Specification

Choice of x1, x2, x4, x8 lane PCIe 3.0 (8Gbps) interfaces

Storage Capacity 2TB Up to 8TB MLC

Supports O/S Windows, Linux, Solaris

Supports RAID 0,1, 5, 6, 10 & JBOD

Built in ECC (Error Correction Code) functionality

Optional Secure Erase

Optional AES256 bit Encryption

Sequential Read: 3.2 GB/S

Sequential Write: 3.0 GB/S

Available in 6U & 3U With/Without Removable Storage

MTBF: 1,000,000 Hours

Mating Cycle: 10,000 times

Operating Temp:

             - Rugged: -40C to +85C

             - Commercial: 0C to +55C

Storage Temp: -55C to +95C

Humidity: 5% - 95% (condensing)

Vibration: 10G (10 to 2000Hz)

Shock: 1500G at 0.5ms

Cooling: Air Cooled and Conduction Cooled


Removable Storage Docking Kit



The Docking Kit is a companion product available for use with the removable storage cannister. The Docking Kit provides a simple and effective way to access and retrieve recorded data stored upon the module in a lab environment.

The Docking kit comprises a PCIe RAID Storage card and SATA cables and can be mounted within a standard desktop PC Server. The external docking module accomodates the removable storage cannister to give fast data retrieval of important mission data.

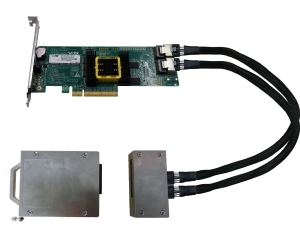

3U VPX RAID Storage docking kit for data offload
