Rugged SSD Solid State Drives

rugged SLC & MLC SSD NAND FLASH
SDK Embedded Systems
SDK Embedded Systems Panther Rugged SSD Solid State Drives are designed to operate in harsh Military and Industrial applications / environments.

Panther 2.5" SATA 3.0 SSDs are designed by SDK Systems and manufactured with military level components with full protection against dust, extreme cold and heat, shock, vibration, and other environmental stresses. Panther SSD supports industry-leading data protection technologies 'Over Load Protect' and 'Power Failure Protect'.




SLC NAND Flash

The Panther MIL Series SLC SSD is designed specifically for harsh environment Military applications.

Product Name
Description
Other Features

Product Name: 64GB SLC SSD
SKU: SC-25ETS3C64MIL

64GB SLC SSD
SKU: SC-25ETS3C64MIL

Product Name: 128GB SLC SSD
SKU: SC-25ETS3C128MIL


128GB SLC SSD
SKU: SC-25ETS3C128MIL

Product Name: 256GB SLC SSD
SKU: SC-25ETS3C256MIL


256GB SLC SSD
SKU: SC-25ETS3C256MIL

Product Name: 512GB SLC SSD
SKU: SC-25ETS3C512MIL


512GB SLC SSD
SKU: SC-25ETS3C512MIL

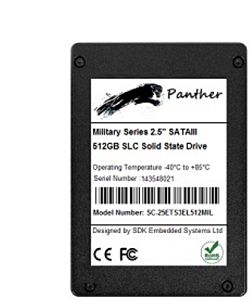

Product Name: 512GB E-Level SLC SSD
SKU: SC-25ETS3EL512MIL


512GB E-Level SLC SSD
SKU: SC-25ETS3EL512MIL

Product Name: 512GB Leaded SLC SSD
SKU: SC-25LETS3C512MIL


512GB Leaded (Non ROHS) SLC SSD
SKU: SC-25LETS3C512MIL

Description

  • Interface: SATA 3.0 (6Gb/s)
  • Temperature range: -40 to +85°C
  • Seq Read/Write: Up to 525MB/s
  • Support: Power Failure Protect, Over Load Protect, ECC
  • Encryption: AES-128 or AES-256 Support
  • Warranty 5 Years

Other Features

  • Secure Erase Function (Optional)
  • Built-In UPS (Optional)
  • Physical Destruction Function (Optional)
  • Conformal Coating Anti-dust, Anti-acid, Anti-mould
  • Optional Parylene Conformal Coating
  • Fully tested and compliant with MIL-STD-180G.

MLC NAND Flash

The Panther ST Series MLC SSD is a perfect storage device for Military and Industrial / Embedded applications.

Product Name
Description
Other Features

Product Name: 128GB MLC SSD
SKU: SD-25W3ST128

128GB MLC SSD
SKU: SD-25W3ST128

Product Name: 256GB MLC SSD
SKU: SD-25W3ST256


256GB MLC SSD
SKU: SD-25W3ST256

Product Name: 512GB MLC SSD
SKU: SD-25W3ST512


512GB MLC SSD
SKU: SD-25W3ST512

Product Name: 1TB MLC SSD
SKU: SD-25W3ST1TB


1TB MLC SSD
SKU: SD-25W3ST1TB

Description

  • Interface: SATA 3.0 (6Gb/s)
  • Backwards compliant to SATA 3Gbps & SATA 1.5Gbps
  • External Cache: 256MB SDRAM DDR3
  • Temperature range: -40 to +85°C
  • Sustained Seq Read: 560 MB/s
  • Sustained Seq Write: 450 MB/s

Other Features

  • MTBF: 2,000,000 hours
  • Operating shock: 1,500G, 0.5msec half sine
  • Operating vibration: 5gRMS, 10-2000 Hz

Product Name: 512GB MLC SSD
SKU: SC-25ETS3C512M

512GB MLC SSD
SKU: SC-25ETS3C512M

Product Name: 1TB MLC SSD
SKU: SC-25ETS3C1024M


1TB MLC SSD
SKU: SC-25ETS3C1024M

Description

  • Interface: SATA 3.0 (6Gb/s)
  • Enhanced endurance by dynamic/static wear-leveling
  • Support dynamic power management
  • Enhanced Power Failure Protect Function
  • Enhanced Over Load Protect Function
  • Temperature range: -40 to +85°C

Other Features

  • Automatic Bad-block management
  • Support Trim and NCQ (Native Command Queuing) command
  • Support BCH ECC 55-bits correctable in 512-bytes sector

SSD With Rugged Connectors

SLC & MLC SSD storage with high-reliability Rugged-SATA and Amphenol R-SATA Connectors for increased numbers of insertions.

Product Name
Description

Product Name: 256GB SLC SSD
SKU: SD-MG25RS256

256GB SLC SSD
SKU: SD-MG25RS256

Product Name: 512GB SLC SSD
SKU: SD-MG25RS512


512GB SLC SSD
SKU: SD-MG25RS512

Product Name: 1TB MLC SSD
SKU: SD-MG25RA1024M


1TB MLC SSD
SKU: SD-MG25RA1024M

Product Name: 2TB MLC SSD
SKU: SD-MG25RA2048M


2TB MLC SSD
SKU: SD-MG25RA2048M

Description

  • Connector: Amphenol R-SATA
  • Interface: SATA 3.0 (6Gb/s)

Product Name: 512GB SLC SSD
SKU: SD-MG25RC512S

512GB SLC SSD
SKU: SD-MG25RC512S

Product Name: 2TB MLC SSD
SKU: SD-MG25RC2048M


2TB MLC SSD
SKU: SD-MG25RC2048M

Description

  • Connector: Rugged SATA
  • Interface: SATA 3.0 (6Gb/s)
