COTS Packaged Enclosure & Backplane Solutions

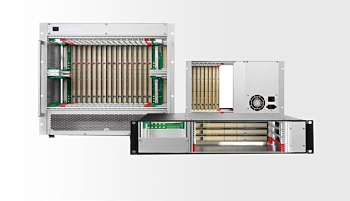

Standard Chassis Solutions

Hartmann offers an extensive range of innovative system solutions for the embedded control market. Designed to be EMC-compliant, and conform to IEEE 1101.1, 1101.10/11 and IEC 60297-3-101, -102, -103 and with a comprehensive selection of backplanes for all systems. Systems are designed for 19” rack, desktop, and panel mount applications, with vertical and horizontal card mounting available. Systems can be ordered with fan trays and filtering, shelf management for system voltage monitoring and fan/temperature regulation and can be supplied with economical ATX power supplies and high-quality plug-in power supply units with voltage monitoring.

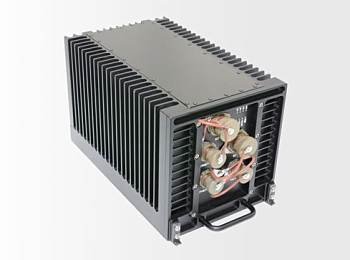

Rugged Chassis Solutions

Hartmann's Rugged MIL ½ & ¾ ATR system platform conforms to the ARINC 404 standard, and provides an intelligent, practical packaging solution supporting the following:

Backplanes - cPCI, VME/VME64, VPX and custom

Operating temperature range of -40°C to +85°C

Rugged aluminium dip-braised constructions designed and optimized for conduction cooling

Low weight, ideal for applications where the weight is critical

Designed with enhanced EMI/EMC as per MIL-STD-461E features.

Rugged yet stylish chassis conforms to mechanical standards IEEE 1101.20

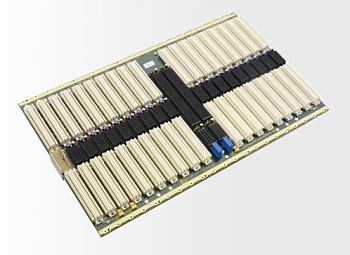

Standard & Custom Backplanes

Hartmann Electronic is THE Expert in backplane technology. For over 45 years, their team of experts have demonstrated expertise in creating sophisticated solutions for the most demanding applications. As an active member of both PICMG and VITA, their backplanes meet and/or exceed all relevant specifications.

Product Name: LMH0000840

Description

4U 50HP VPX Chassis with fan tray, 5 Slot Full mesh configuration Backplane with rear I/O and 300W ATX Power Supply.

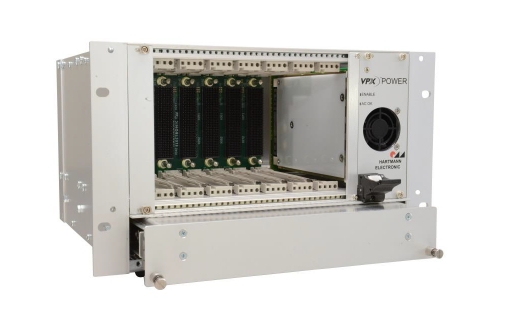

Product Name: LMH0000890

Description

4U 50HP VPX Chassis with fan tray, 7 Slot BKP3-CEN07-15.2.3-4 Backplane with rear I/O and 600W ATX Power Supply.

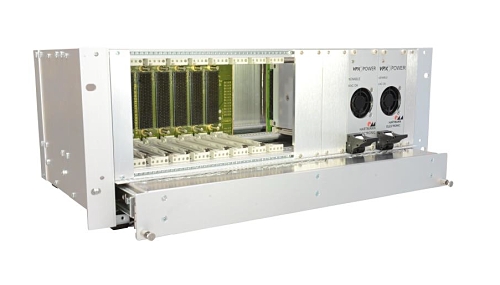

Product Name: LMH0000920

Description

4U 84HP VPX Chassis with fan tray, 8 Slot BKP3-CEN08-15.2.15-4 Backplane with rear I/O and 2x 600W ATX Power Supplies.

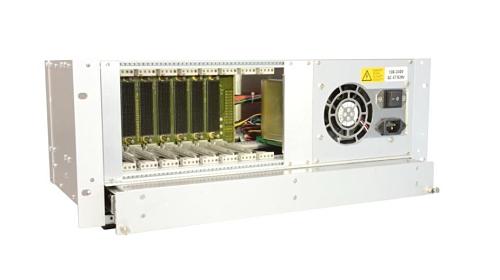

Product Name: LMH0000930

Description

4U 84HP VPX Chassis with fan tray, 8 Slot BKP3-CEN08-15.2.15-4 Backplane with rear I/O and industrial 600W ATX Power Supply.

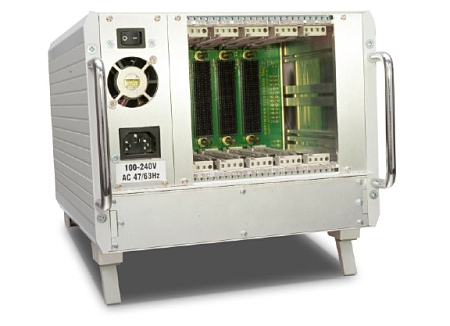

Product Name: LMH0000940

Description

4U 42HP VPX Chassis with fan tray, 5 Slot Full mesh configuration Backplane with rear I/O and 300W ATX Power Supply.

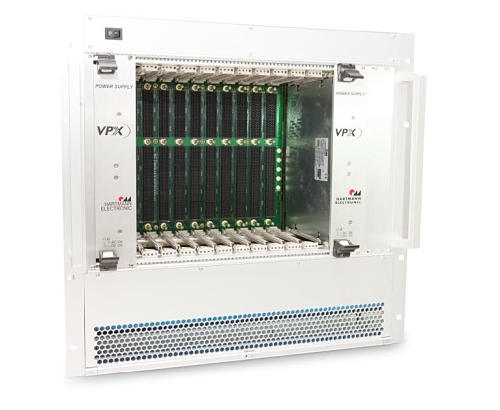

Product Name: LMH0000950

Description

4U 84HP VPX Chassis with fan tray, 8 Slot BKP6-CEN10-11.2.4-4 Backplane with rear I/O and 2x 1000W Power Supplies.
