Rugged Data Recorder (Mini Rack)








rugged small form factor data recorder
Pentek

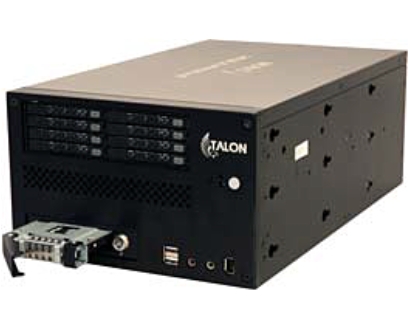

Pentek's High Performance, Rugged Mini Rackmount Data Recorder.

Optimized for SWaP (size, weight and power), the Pentek Talon RTR Mini Rack product line provides the wide bandwidth data capture performance and storage capacity previously only possible in much larger rack-mountable products.

Up to eight hot-swap SSDs with support for RAID levels 0, 5 or 6. All eight SSD data drives and the single operating system SSD can be easily removed from front panel drive bays in seconds. Drives are mounted on carriers for easy transfer to an offload system so the recorder can remain installed while data is transported to the lab.

Removable solid state storage supporting up to 30.7TB

Reduced power consumption - 120W to 150W at full operation

Size: 5.25" H x 8.5" W x 14" D

Weight: 17 pounds

Operating Shock: 15 g max. (11 msec, half-sine wave)

Operating Vibration: 10 to 20 Hz: 0.02 inch peak, 20 to 500 Hz: 1.4 g peak acceleration

Front end interfaces include a wide range of analog (speeds up to 3.6GHz) and Digital (S-FPDP & 1, 10 & 40 Gigabit Ethernet) I/O.


Product Name
Description
Other Features

Product RTR 2558

Description

LVDS Digital I/O Rugged Mini Rack Recorder

  • 32 bits of LVDS digital I/O
  • Supports clock rates up to 250 MHz

Other Features

  • LVDS clock, Data Valid and Data Suspend signals

Product RTR 2556

Description

Serial FPDP Rugged Mini Rack Recorder

  • Complete Serial FPDP record and playback system (Up to four I/O channels)
  • Supports Flow Control, CRC, and Copy/Loop Mode as a receiver and transmitter
  • Copper, single-mode and multi-mode fiber interfaces available

Other Features

  • Real-time aggregate recording rates of up to 1.6 GB/sec
  • Supports 1.0625, 2.125, 2.5, 3.125 and 4.25 GBaud link rates

Product RTR 2555

Description

1, 10, 40 Gigabit Ethernet Rugged Mini Rack Recorder

  • Records gigabit, 10-gigabit or 40-gigabit Ethernet streams
  • TCP and UDP protocols
  • Copper or optical interfaces

Other Features

  • Aggregate recording rates to 4.0 GB/sec

Product RTR 2549

Description

3.6 GS/sec Ultra Wideband RF/IF Mini Rack Recorder

  • Sample rates up to 3.6 GHz in single-channel mode
  • Sample rates up to 1.8 GHz in dual-channel mode
  • Capable of recording RF/IF frequencies to 1.75 GHz in single-channel mode
  • Capable of recording RF/IF frequencies to 2.8 GHz in dual-channel mode

Other Features

  • 12-bit A/D, with 16-bit and 8-bit packing modes
  • Real-time aggregate recording rates of up to 4.0 GB/sec

Product RTR 2548

Description

1 GS/sec RF/IF Rugged Mini Rack Recorder

  • 1 GHz 12-bit A/Ds
  • 1 GHz 12-bit D/As
  • 400 MHz record and playback signal bandwidths
  • Recording and playback of IF signals up to 2.0 GHz

Other Features

  • Real-time aggregate recording rates of up to 2.0 GB/sec

Product RTR 2547

Description

500 MS/sec RF/IF Rugged Mini Rack Recorder

  • 500 MHz 12-bit A/Ds or 400 MHz 14-bit A/Ds
  • 800 MHz 16-bit D/As
  • 200 MHz record and playback signal bandwidths
  • Recording and playback of IF signals up to 700 MHz

Other Features

  • Real-time aggregate recording rates of up to 2.0 GB/sec

Product RTR 2546

Description

200 MS/sec RF/IF Rugged Mini Rack Recorder

  • 200 MHz 16-bit A/Ds
  • 800 MHz 16-bit D/As
  • 80 MHz record and playback signal bandwidths
  • Recording and playback of IF signals up to 700 MHz

Other Features

  • Real-time aggregate recording rates of up to 1.6 GB/sec
