Ethernet Switches

rugged ethernet switches

moog protokraft
MOOG Protokraft offers a range of compact and lightweight rugged Ethernet Switches for high speed network communications in harsh environments.

  • Compact size and light weight for simple mounting and installation
  • Rugged Aluminum housings with D38999 connector interfaces
  • Shock, vibration and immersion resistant per MIL-STD-810F
  • Olive Drab Cadmium or Nickel plating meets stringent corrosion resistance specifications
  • Operating temperature range from -40°C to +85°C
  • MIL-STD-810G compliant

Wall or Floor Mounted Ethernet Switches - 28VDC


Product Name
Description

Description


  • 10x triple-speed (10/100/1000 Mbps) copper Ethernet ports
  • 2x 10GBase-SR Multimode fiber optic Ethernet ports

  • 10+2 port block diagram

Description


  • 4x10/100/1000Base-T nonblocking wire speed copper Ethernet ports
  • 1x1000Base-BX-U/D single fiber Ethernet port

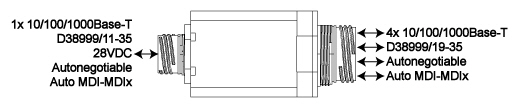

  • 4+1 port block diagram

Description


  • Copper + Fiber Ethernet switch for 4x10/100/1000Base-T
  • 2x100Base-FX or 1000Base-SX switched ports
  • Unmanaged (Layer 2) Ethernet switch - no configuration required

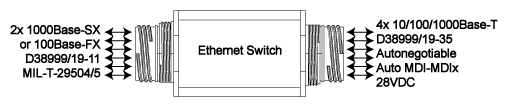

  • 4+2 port block diagram

Description


  • 4+1 port Ethernet switch for 5x10/100/1000Base-T switched interface ports
  • Full duplex flow control and half duplex back pressure, symmetric and asymmetric
  • Unmanaged (Layer 2) Ethernet switch - no configuration required

  • 4+1 port block diagram

Description


  • Ethernet switch with 5x10/100/1000Base-T switched interface ports
  • Full duplex flow control and half duplex back pressure, symmetric and asymmetric
  • Unmanaged (Layer 2) Ethernet switch - no configuration required

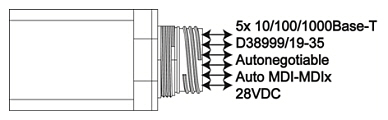

  • 5 port block diagram

Description


  • 20+2 Port L2+Ethernet switch with D38999 connector interfaces
  • 2x10GBASE-SR ports for network expansion / cable consolidation
  • 20x auto-negotiable 10/100/1000BASE-T Ethernet ports
  • Extended L2 Functionality, including Jumbo Frame support

Panel Mounted Ethernet Switches - 5VDC


Product Name
Description

Description


  • 5x (4+1) triple-speed switched 10/100/1000Base-T Ethernet ports
  • Jumbo frame support in all speeds (10/100/1000 Mbps)
  • Full duplex flow control and half duplex back pressure, symmetric and asymmetric

  • 1+4 port panel mount ethernet switch

Description


  • 4x1000Base-SX or 100Base-FX switched optical Ethernet ports
  • 1x10/100/1000Base-T Ethernet internal connection (Samtec SMT connector)
  • Compliant with 100Base-FX, 1000Base-SX and 10/100/1000Base-T

  • 1+4 port panel mount ethernet switch

Other models are available, for a complete list of options see the Moog Protokraft website [Read more...]
